Upload Image from PowerApps to Flow to SharePoint via an Unused Outlook connector

/

This is the simplest no code approach to the PowerApps image upload problem so far. Far simpler than with Azure Function, with custom connector, with hacked Flow button via Flow Studio, even simpler than Azure Blob Storage. All standard connectors so no premium required, and no risk of PowerApps trigger resetting and breaking the connection.

This is my simplest method to upload any image from PowerApps to SharePoint

  • No Swagger

  • No Edit JSON

  • No Azure Blob Storage

  • All Standard Connectors

  • No HTTP

  • Can easily add more arguments


Original

This blog post is a cleaned up version of the #Flow Ninja hack 87 thread which happened on Sunday night. https://twitter.com/johnnliu/status/1114863521525669888

Follow me on Twitter and catch the next live hack.


[Updated: 2019-04-27] Video version, PnP SharePoint Community Call from Chaks

From @chakkradeep

This community call demo is taken from the SharePoint General Development Special Interest Group recording on 18th of April 2019. In this video Chaks (Microsoft) shows how you can upload files to SharePoint from PowerApps using Microsoft Flow Presenter - Chakkaradeep (Chaks) Chinnakonda Chandran (Microsoft) - @chakkaradeep Full details on the community call from https://developer.microsoft.com/en-us/sharepoint/blogs/sharepoint-dev-community-pnp-general-sp-dev-sig-recording-18th-of-april-2019/ More details on the SharePoint dev community calls from http://aka.ms/sppnp.


Steps - first a bit of study and exploration

I have a @MicrosoftFlow hack this evening to send files from @PowerApps to @SharePoint I have been thinking about this one for a while. So if you are still awake, follow along.

First - I check the Flow button trigger.
Then create a PowerApps trigger, use peek code to study

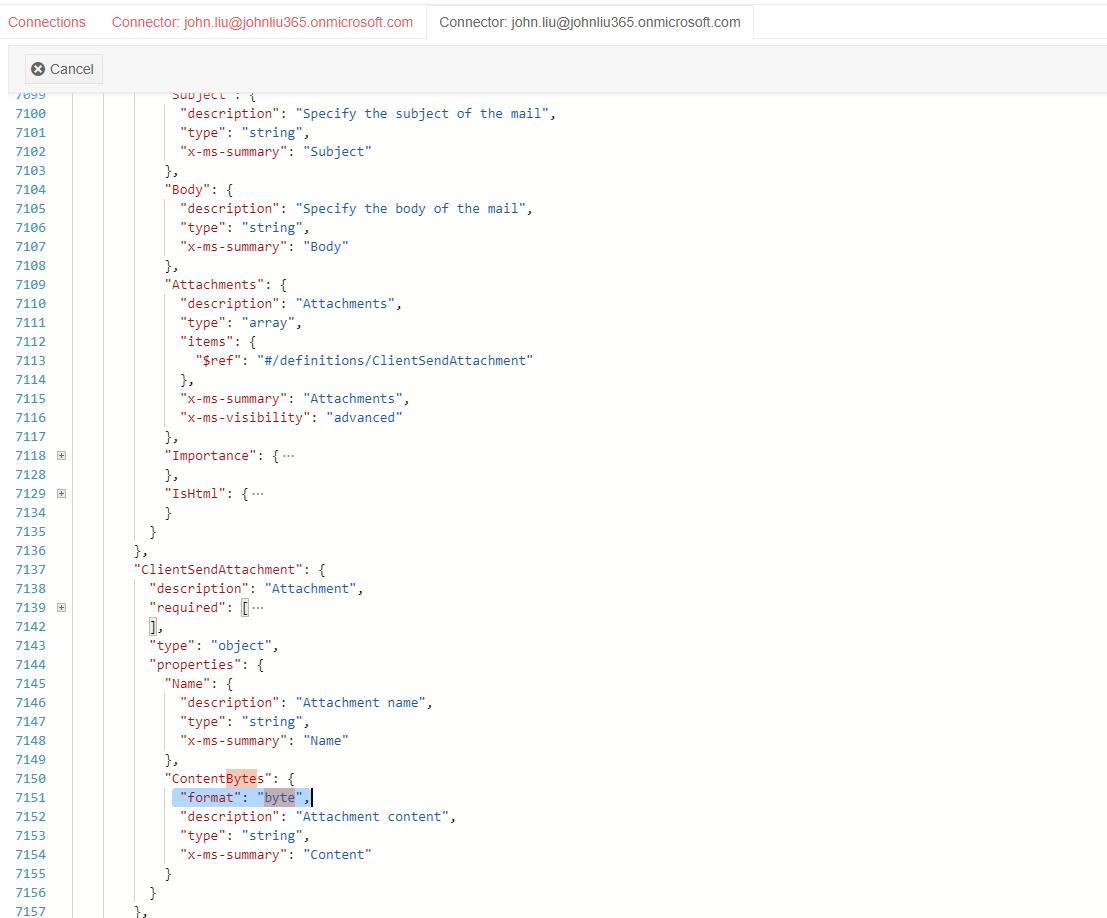

Double check SharePoint connector - I read this with FlowStudioApp - there's no method that takes format: byte. Everything wants format: binary.

I spent a while looking through various standard connectors looking for something that does format: byte - I found one. In the Outlook connector.
In send email with attachment. **cackle** **evil grin**

Evil twinkle in the eye acquired - we now execute the plan

So we hack the PowerApps trigger. by using a totally unrelated connector.
I can't hold back my dislike of the PowerApps trigger. Why can't it behave more like the Flow button trigger...

The argument sendanemail_attachmentscontent is ugly. Try using Flow Studio to rename them first before you go too far. This will also make the connection tidier when you take it over to PowerApps.

Finally

PowerApps time - this is probably my simplest method.
Don't need Azure blob storage
Don't need edit json
Don't need swagger
Can have multiple arguments

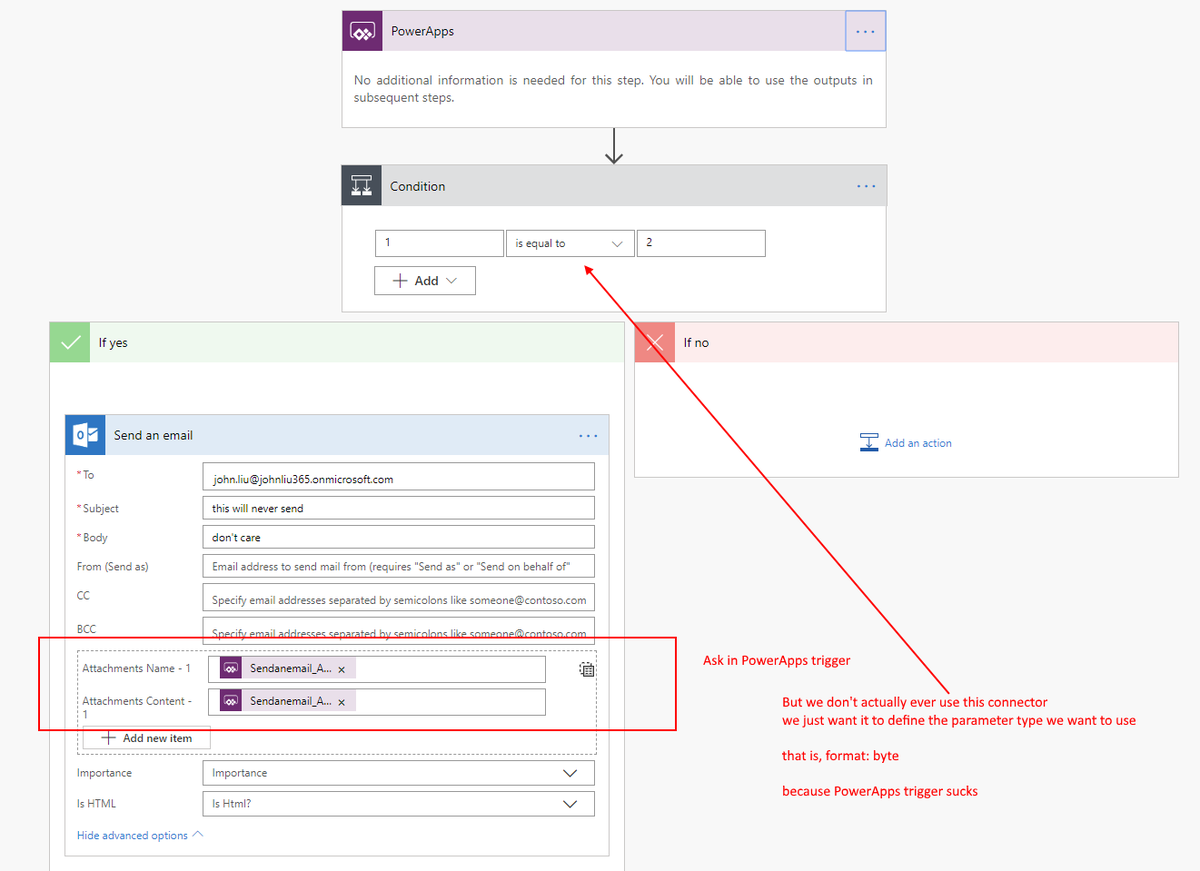

Just need to conditionally build a strange Flow that doesn't use the outlook connector but use it to lock the PowerApps trigger

  • See the condition is always false - it doesn’t run

  • See also the Size of the create file is much larger than a broken blob string

  • We need to keep the unused Send an email action even if we don’t use it - because it locks the PowerApps trigger in place so the trigger doesn’t reset.


And there we have it - the absolutely simplest no-code solution to send a File from PowerApps to SharePoint with ease.

We lock the PowerApps trigger to format: byte by using an otherwise unused Outlook send mail connector.

Future

There are a few things Microsoft could do that will make this even easier. If they ever get around to it:

  • Allow us to define PowerApps trigger directly either by using Flow Button UI or Request schema

  • Allow SharePoint connector to accept format: byte

  • Allow PowerApps to send format: binary, right now PowerApps converts that to string, dropping the non-character bytes from the data it sends to Flow
